The Vitalograph asma-1™ child version is a simple to use electronic peak flow meter that measures PEF, FEV0.5, FEV0.75 and FEV1. It offers greater accuracy than mechanical peak flow meters and eliminates the need for paper record cards.

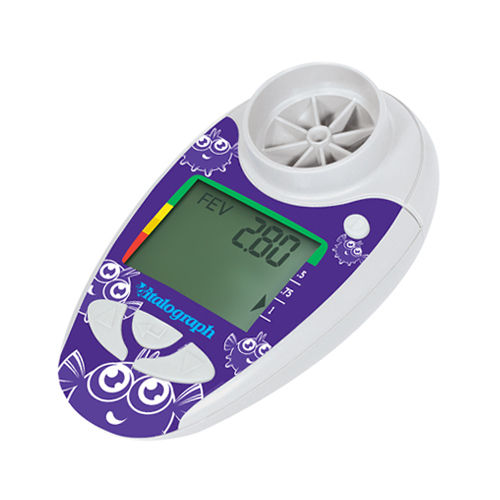

asma-1 child Electronic Asthma Monitor

SKU: 40065
    • Simple to use
    • Electronic record - no need for record cards
    • Automatically assesses test quality
    • More accurate than a mechanical meter
    • Patient can review past results at home
    • Child version measures PEF, FEV0.5, FEV0.75 and FEV1
    • Can display % of personal best for both PEF and FEV1
    • PEF and FEV1 zones can be personalised
    • Automatically stores best values
    • Large, easy to read display
    • Stores 600 test sessions
    • Suitable for use in clinic with Vitalograph Bacterial Viral Filters (eco BVF)
    • Language independent
    • ISO 23747:2007 Peak Flow Meters
      ISO 26782:2009 Spirometers
      ATS/ERS: 2005 Spirometry Guidelines
  • Product Vitalograph asma-1
    Model Number 4000
    Part Number 40000, 40400, 40300, 40050
    Description Vitalograph asma-1, Vitalograph asma-1 USB, Vitalograph asma-1 Bluetooth, Vitalograph asma-1 Serial
    Size 113 x 63 x 48mm
    Weight 55g net
    Parameters Displayed (Adult version) PEF & FEV1
    Parameters Displayed (Child version) PEF, FEV0.5, FEV0.75 and FEV1
    Operating Temperature Range 17 - 37°C
    Measuring Principle Stator/rotor mass flow meter
    Scale Intervals PEF 1L/min
    FEV1 1L
    Accuracy FEV1 better than +/-3% or +/-100ml (whichever is greater)
    PEF better than +/-5% or +/-25L/min (whichever is greater)
    Repeatability Better than 5% or 10L/min, whichever is greater
    Cleaning Alcohol wipe, especially the mouthpiece, weekly
    Flow Range 0 - 999 L/min
    Disposal Methods Recycle
    Performance standard ISO 26782:2009; ISO 23747:2007; ATS/ERS 2005
    Safety Standards IEC 60601-1:2005
    Designed and manufactured to following QA/GMP standards CE 0086
    ISO 13485:2003
    FDA 21CFR820
